HD900

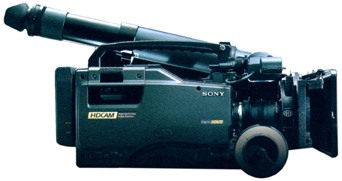

The HDW-F900 High Definition camcorder integrates a 3CCD HD
(2.2 million pixel) colour video camera with an HDCAM format portable
video
recorder. The versatile strength of the HDW-F900 is its ability to shoot
at
24 fpd amera with an HDCAM format portable video recorder. The
versatile strength of the HDW-F900 is its ability to shoot at 24 fpd just
like
film, or switch across to record at 25P, 30P, or at 50 or 60Hz interlaced.
The camera head incorporates a 12-bit A/D converter and advanced digital
signal processing to produce stunning high definition widescreen pictures.
A new method of HD processing improves the image quality even further
and simplifies set-up operation. All combine to make the HDW-F900 the
ideal HD camcorder for high quality electronic cinematography production.
D900

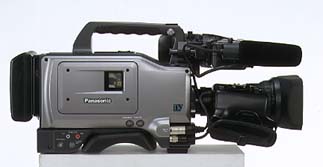

Debuting as the industrie's first camera/recorder to use large DV
cassettes,
the AG-DVC200 provides extra-long high-quality DV recording on a single
tape. Designed for an array of professional uses, the camera section of
the
AG-DVC200 features a 1/2-inch interchangeable bayonet mount lens. Its
digital processing and 410,000-pixel IT 3CCD team up to deliver superior
picture quality with high sensitivity and low smear. Equipped with an
IEEE1394 terminal (i-Link/Firewire), the AG-DVC200 allows uploading of
picture and sound data to a PC, or the capability of performing digital
dubbing onto a DV recorder. The AG-DVC200's superb digital performance
and extended recording capability make it especially well suited for
shooting weddings, sports and other feature-length events.
Longest Camera/Recorder Recording
Time Using a large DV cassette - an industry first - permits the AG-DVC200
to record longer without changing cassettes. The AG-DVC200 provides
outstanding digital picture quality, plus superb digital audio with either
16-bit, 48 kHz sound or 12-bit, 32 kHz sound.
1/2-inch IT-3CCD for High Quality and Low Light Sensitivity
The AG-DVC200's broadcast-type 1/2-inch bayonet lens mount combines
with a 410,000-pixel IT 3CCD and digital processing to deliver superior
pictures and high sensitivity. Shooting at F11 in lighting as dim as 0.5
lux,
the AG-DVC200 providesoutstanding 800-lines horizontal resolution, an
S/N ratio of 62 dB, and very low smear.
Professional Camera Section.
The AG-DVC200's camera section inherits the same broadcast-level
specifications featured in our best-selling DVCPRO camera/recorders
Gain Up to a maximum of +36dB
1 ND/CC Filter (4-position)
ATW/Quick Focus/Full Auto/Electric Luminance Control/Iris Control
Shockless AWB/Shockless Gain/Front Jog Menu
Scene Memory (four types)/User Scene Memory (four types)
Digital Process: Black Stretch, Black Light Compensation, Auto Knee,
2D Filter, Skin Detail,Coring, Super Color
6-step shutter with synchro scan capability for shooting PCs
Color Phase Control and color Effect
IEEE1394 Terminal
The AG-DVC200 is equipped with an IEEE1394 digital interface terminal
(i-Link/Firewire), making it easy to upload picture and sound data to
a
Macintosh or Windows based PCs. Users can also connect the
AG-DVC200 to a DV recorder such as the AG-DV1000/AG-DV2000,
for dubbing with no quality loss.
Other Features:
Built-in Anton/Bauer Gol Mount Plate
Built-in Color Bar Generator
1.5" monochrome viewfinder
Color playback capability
Specifications: GENERAL
Power Source: DC 12V (DC10.5 to 17V)
Power Consumption: 18 W
Weight: Approx. 11.02 lbs. (5 kg) range
CAMERA CCD Elements:
1/2" IT CCD (410,000 pixels) x3
S/N Ratio: 62 dB
Horizontal Resolution: 800 lines
Sensitivity: 2000 lux
Minimum Luminance: 0.5 lux (+36dB)
Gain: Max. +36dB
Optical Filters: ND/CC combination (4-position)
VTR Recording Format: DV
Tape Speed: SP: 18.812 mm/sec
Max Recording Time: SP: 270 min (AY-DV270)
Video Recording Format: Digital Component
Audio Recording Format: 2-channel, 16-bit 48 kHz/12-bit 32 kHz
Input/Output IEEE1394: 4-pin x 1 Mic In: XLR x 1
Camera Out: BNC x 1
Video Out: BNC x 1, 1.0Vp-p 75 ohms
S-Video Out: 4-pin x 1, Y; 1.0Vp-p, C: 0.3Vp-p
Audio Out: RCA x 2 (L/R)
Headphones: Mini Jack x 1 DC In: XLR x 1 DC Out: XLR x 1
|
